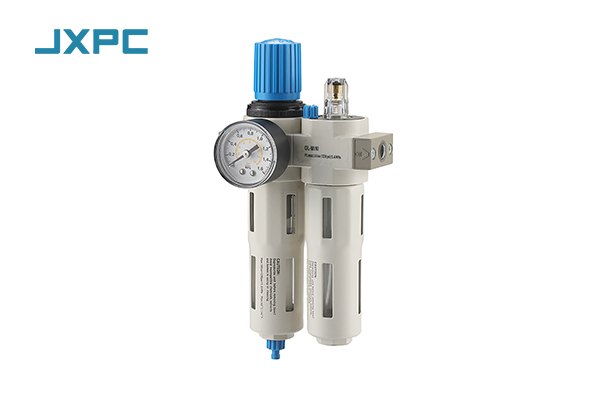

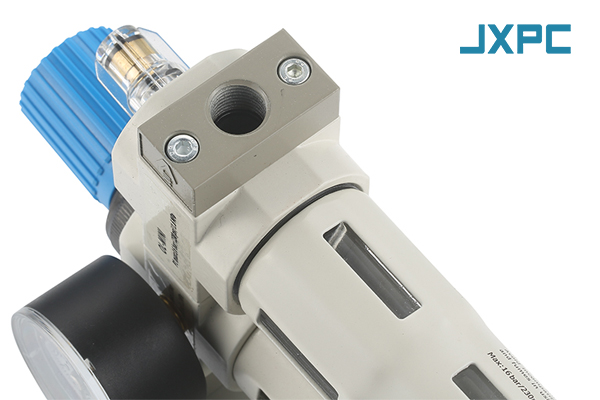

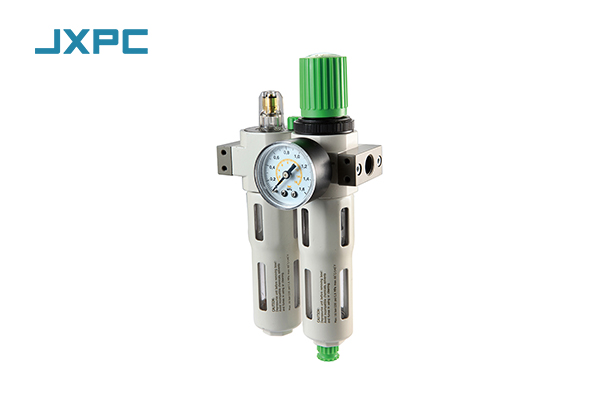

• MediumFilter/Regulator/Lubricator

• For Removal OfParticles, Water

• Filter Rating40 micron

• Connection Size1/8 in BSPP

• Max. Operating Pressure16 bar

• Adjustment Range0.5…12 bar

• Rated Flow700 L/min

• Body MaterialZinc

• Bowl MaterialPolycarbonate with cover

• Bowl Size22 ml

• Ambient Temperature0…60 ℃

• Drain TypeDifferential(semi-auto)

• Gauge Port Size1/8 in BSPP

• Overall Height209 mm

• IncludesMounting Brackets and Pressure Gauge

Customizable:

Thread type: G(as standard)/PT/NPT

Material of filter element: Sintered bronze(as standard)/Plastic(PE)

Filter rating: 40μm(as standard)/25μm/5μm

Color: Golden/White/etc...

Drain type: Differential(semi-auto) drain(as standard)/Auto drain

Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
