4ZL42

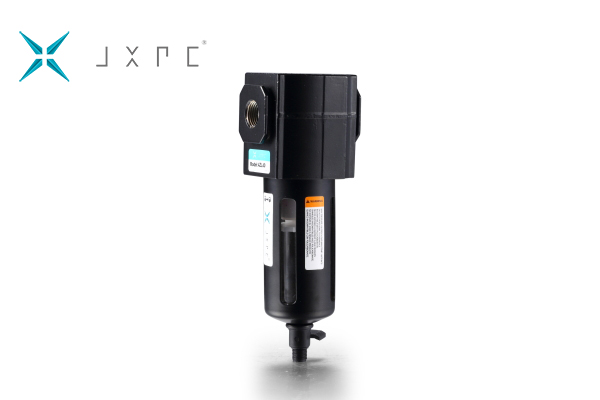

1/2 in NPT Air Filter, 5 μm, 69 cfm Rated Flow, 10 bar Max. Pressure
Air line filters are designed to remove airborne impurities, dirt particles, condensation and oil aerosols from compressed air through air supply lines, by means of centrifugal force and a filter element. These units are equipped with filter element, and manual drain.They are used in a variety of air systems which may go with air compressor, spray gun, regulators, lubricators, hoses, etc.
Feature:
To filter the compressed air
Modular connector allows easy removal and swap out.
5 micron filter element
Product details
MediumAir filter
For Removal OfParticles, Water
Filter Rating5 μm
Connection Size1/2 in NPT
Max. Operating Pressure10 bar
Rated Flow69 cfm
Body MaterialAluminium
Bowl MaterialPolycarbonate with cover
Bowl Size120 ml
Ambient Temperature-5…50 ℃
Drain TypeManual
Overall Height181 mm
Customizable:
Thread type: NPT(as standard)/PT/G
Filter rating: 5μm(as standard)/40μm
Drain type: Manual drain(as standard)/Auto drain
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
