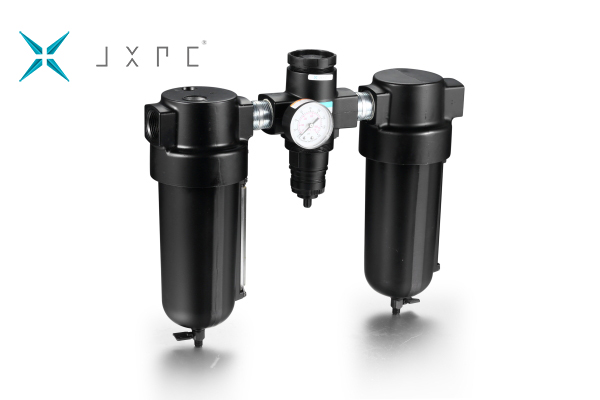

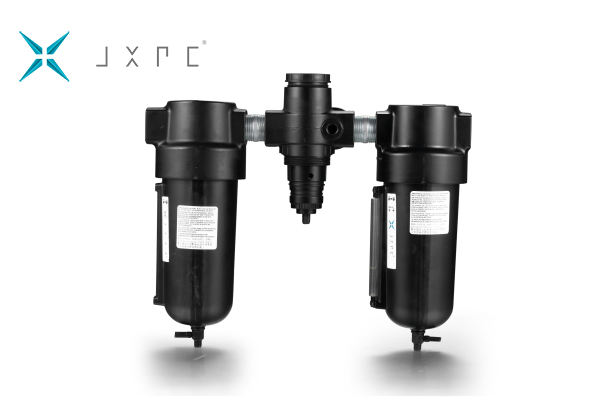

3FRL50MW-06
1 in NPT Filter Regulator Lubricator, 5 μm, 160 cfm Rated Flow, 17 bar Max. Pressure
The 3-pc. units consist of a filter, regulator and lubricator. Combinations include mounting brackets and pressure gauges.
Feature:
To filter and lubricate the compressed air and output with stable pressure
Features a modular connector for easy removal and replacement.
5 micron filter element
17 bar maximum working pressure
Product details
MediumFilter/Regulator/Lubricator
SizeHeavy Duty
For Removal OfParticles, Water
Filter Rating5 μm
Connection Size1 in NPT
Adjustment Range0.5…8.5 bar/5…125 psi
Rated Flow275 cfm
Body MaterialAluminium
Bowl MaterialMetal
Bowl Size1200 ml
Ambient Temperature-5…80 ℃
Drain TypeManual
Gauge Port Size1/4 in NPT
Overall Height330 mm/13.00 in
Overall Width390 mm/15.36 in
IncludesMounting Brackets and Pressure Gauge
Customizable:
Thread type: NPT(as standard)/PT/G
Filter rating: 40μ/25μ/5μ
Drain type: Manual drain(as standard)/Auto drain
Color: Black(as standard)/White/Gray/etc...
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
