2FRL30CW-04

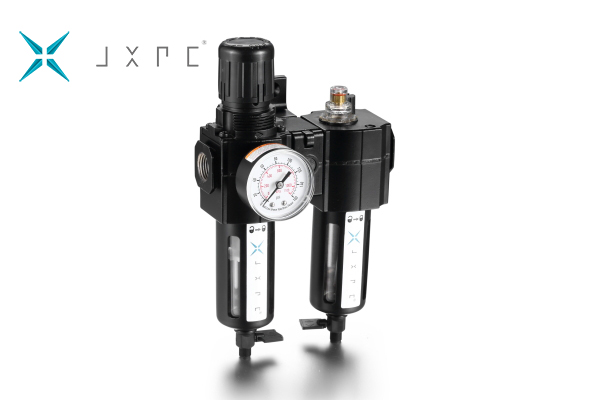

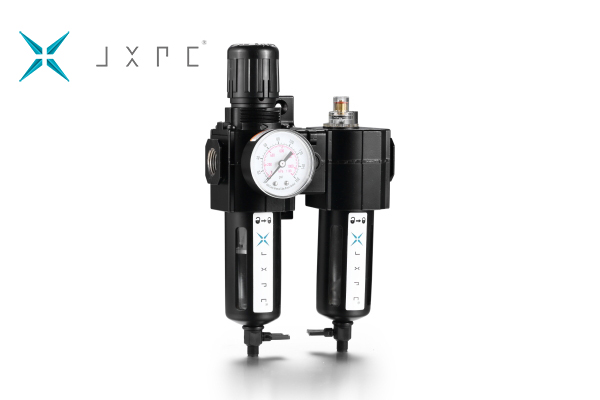

1/2 in NPT Filter Regulator Lubricator, 40 micron, 60 cfm Rated Flow, 10 bar Max. Pressure
The 2-pc. units combine the air filter regulator with a lubricator. Combinations include mounting brackets and pressure gauges.
Feature:
To filter and lubricate the compressed air and output with stable pressure
Features a modular connector for easy removal and replacement.
40 micron filter element
Product details
MediumFilter/Regulator/Lubricator
SizeIntermediate
For Removal OfParticles, Water
Filter Rating40 micron
Connection Size1/2 in NPT
Adjustment Range0.5…10 bar/5…150 psi
Rated Flow60 cfm
Body MaterialAluminium
Bowl MaterialPolycarbonate with cover
Bowl Size120 ml
Ambient Temperature-5…50 ℃
Drain TypeManual
Gauge Port Size1/4 in NPT
Overall Height248 mm/9.77 in
Overall Width149.6 mm/5.89 in
IncludesMounting Brackets and Pressure Gauge
Customizable:
Thread type: NPT(as standard)/PT/G
Filter rating: 40μ/25μ/5μ
Drain type: Manual drain(as standard)/Auto drain
Color: Black(as standard)/White/Gray/etc...
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
