2FRL40MP-04

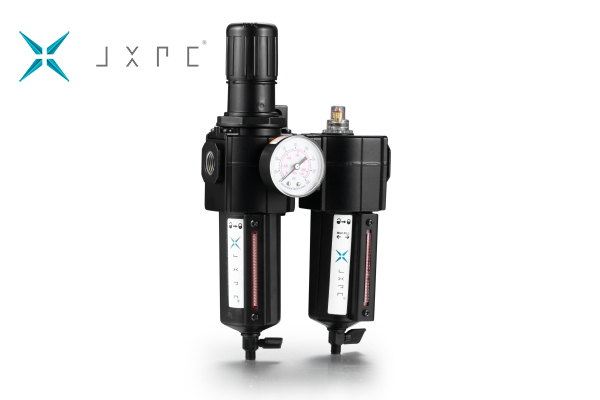

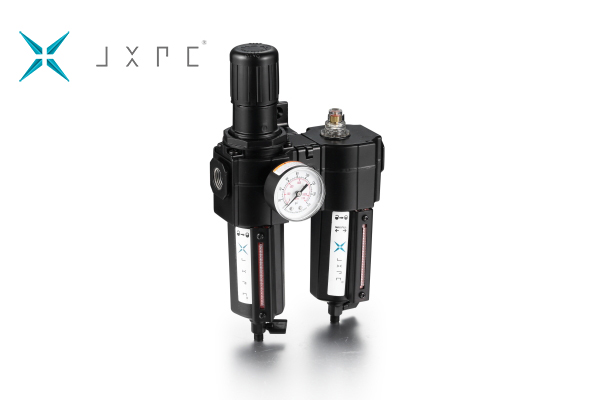

1/2 in NPT Filter Regulator Lubricator, 40 micron, 192 cfm Rated Flow, 17 bar Max. Pressure
The 2-pc. units combine the air filter regulator with a lubricator. Combinations include mounting brackets and pressure gauges.
Feature:
To filter and lubricate the compressed air and output with stable pressure
Features a modular connector for easy removal and replacement.
40 micron filter element
17 bar maximum working pressure
Product details
MediumFilter/Regulator/Lubricator
SizeStandard
For Removal OfParticles, Water
Filter Rating40 micron
Connection Size1/2 in NPT
Adjustment Range0.5…10 bar/5…150 psi
Rated Flow192 cfm
Body MaterialAluminium
Bowl MaterialMetal
Bowl Size245 ml
Ambient Temperature-5…80 ℃
Drain TypeManual
Gauge Port Size1/4 in NPT
Overall Height304 mm/11.97 in
Overall Width174 mm/6.85 in
IncludesMounting Brackets and Pressure Gauge
Customizable:
Thread type: NPT(as standard)/PT/G
Filter rating: 40μ/25μ/5μ
Drain type: Manual drain(as standard)/Auto drain
Color: Black(as standard)/White/Gray/etc...
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
Related downloads
Related Parts
Related products
-

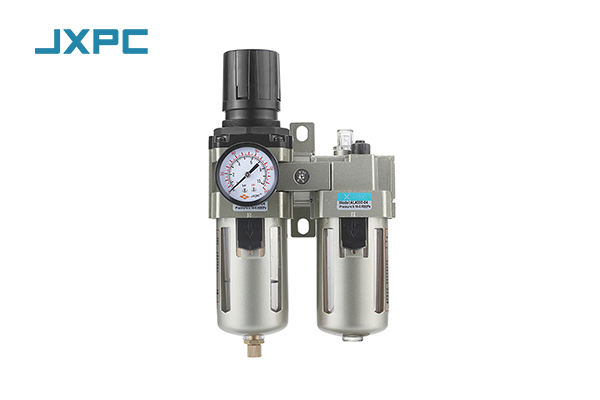

1/2 in NPT Filter Regulator Lubricator, 40 micron, 192 cfm Rated Flow, 10 bar Max. PressureThe 2-pc.... -
