3FRL25MW-03

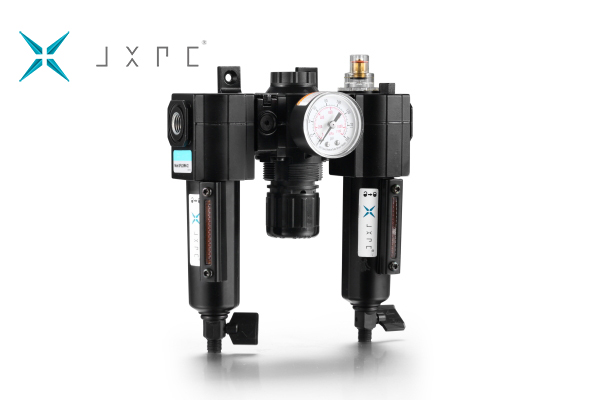

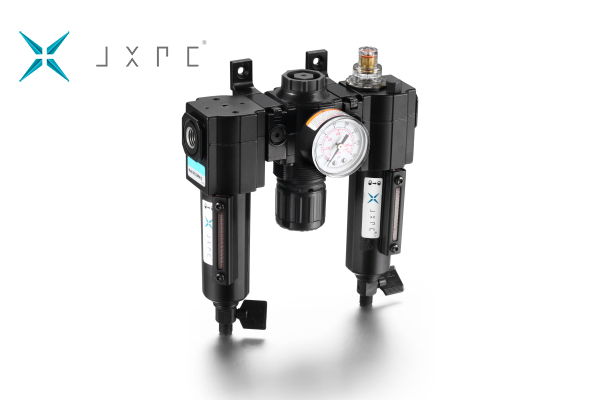

3/8 in NPT Filter Regulator Lubricator, 5 μm, 51 cfm Rated Flow, 17 bar Max. Pressure
The 3-pc. units consist of a filter, regulator and lubricator. Combinations include mounting brackets and pressure gauges.
Feature:
To filter and lubricate the compressed air and output with stable pressure
Features a modular connector for easy removal and replacement.
5 micron filter element
17 bar maximum working pressure
Product details
MediumFilter/Regulator/Lubricator
SizeCompact
For Removal OfParticles, Water
Filter Rating5 μm
Connection Size3/8 in NPT
Adjustment Range0.5…10 bar/5…150 psi
Rated Flow51 cfm
Body MaterialZinc
Bowl MaterialMetal
Bowl Size120 ml
Ambient Temperature-5…80 ℃
Drain TypeManual
Gauge Port Size1/8 in NPT
Overall Height190 mm/7.48 in
Overall Width164 mm/6.46 in
IncludesMounting Brackets and Pressure Gauge
Customizable:
Thread type: NPT(as standard)/PT/G
Filter rating: 40μ/25μ/5μ
Drain type: Manual drain(as standard)/Auto drain
Color: Black(as standard)/White/Gray/etc...
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
