JPC08-R03

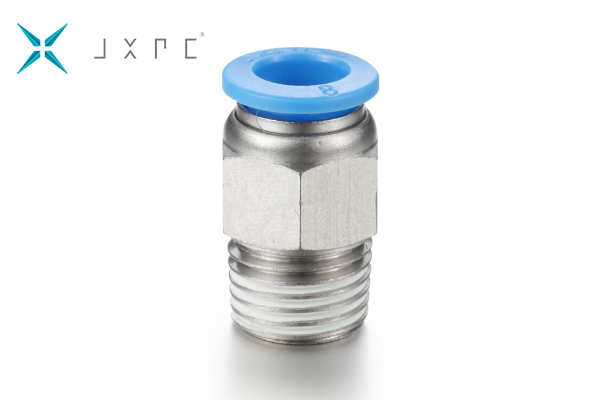

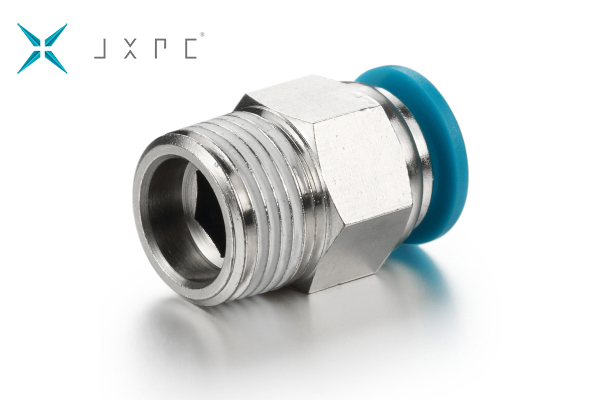

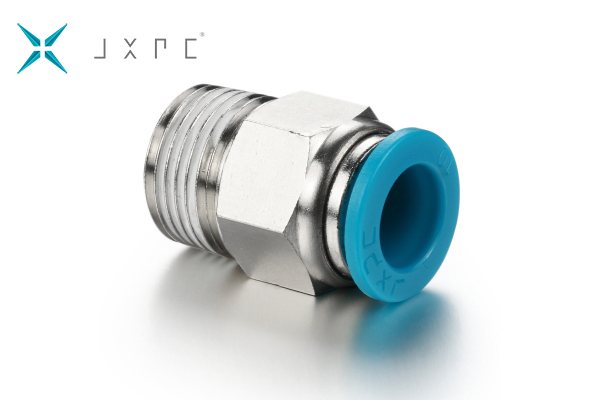

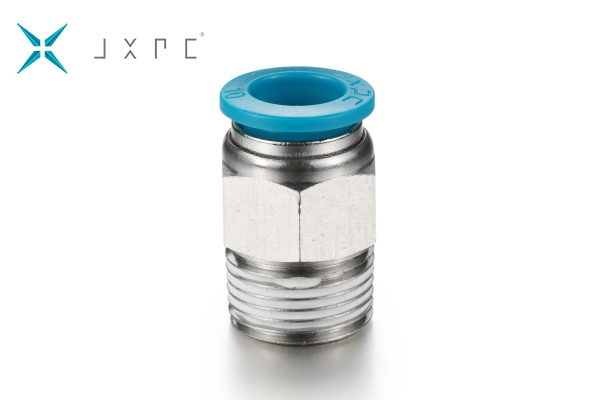

Straight Male Adapter Pneumatic Push-In Fitting, 8mm Tubing To PT3/8
For most type of pneumatic push-in fittings, the body and threaded portion can tum independently of one another for use in confined spaces. For use with polyurethane, polyolefin, nylon, and PTFE tubing. Can be used for positive air pressure as well as vacuum for actuators, air preparation, and directional control valves. Low disconnecting force helps prevent collet and chuck from biting into and damaging tubing.
Feature:
Light weight design
Mass productive with low cost
Customizable plastic parts color
Stability performance
Product details
ItemMale Adapter
MediumAir, vacuum
Working Pressure-1...10 bar
Working Temperature0...60 ℃
Connection TypeTube x BSPT(M)
Tube Size8 mm
Thread SizeBSPT3/8"
Body MaterialBrass Nickel Plated
Release SleevePOM
SealNBR
Lock ClawSUS
Special FeaturesWith Thread Sealant
Customizable:
Color: Black on case, blue on release sleeve(as standard), other colors available
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging…
Related downloads
Related Parts
Related products
-

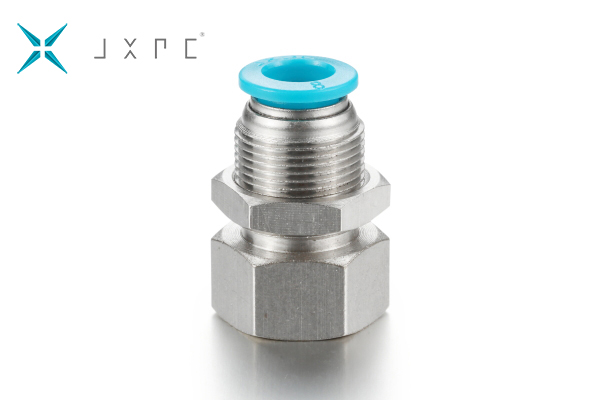

Straight Bulkhead Female Adapter Pneumatic Push-In Fitting, 6mm Tubing To G3/8For most type of pneum... -
