JPLL10-G04

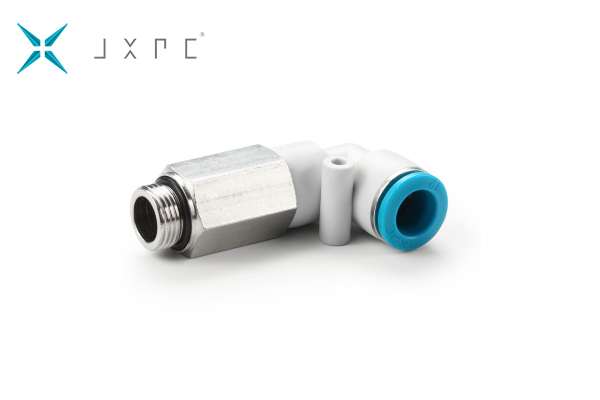

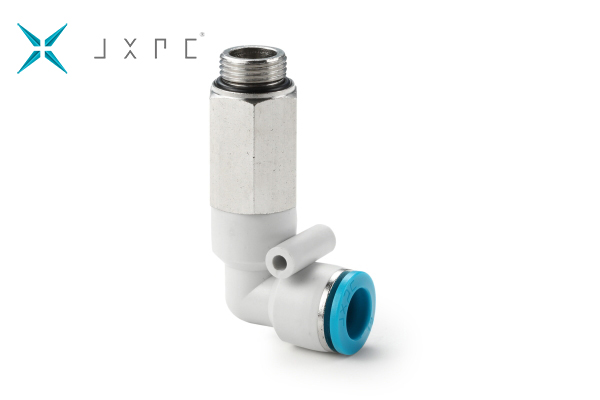

Extended Male Elbow Pneumatic Push-In Fitting, 10mm Tubing To G1/2
For most type of pneumatic push-in fittings, the body and threaded portion can tum independently of one another for use in confined spaces. For use with polyurethane, polyolefin, nylon, and PTFE tubing. Can be used for positive air pressure as well as vacuum for actuators, air preparation, and directional control valves. Low disconnecting force helps prevent collet and chuck from biting into and damaging tubing.
Feature:
Light weight design
Mass productive with low cost
Customizable plastic parts color
Stability performance
Product details
ItemExtended Male Elbow, 90 Degrees
MediumAir, vacuum
Working Pressure-1...10 bar
Working Temperature0...60 ℃
Connection TypeTube x BSPP/G(M)
Tube Size10 mm
Thread SizeG1/2"
Body MaterialPBT
Release SleevePOM
SealNBR
Lock ClawSUS
Special FeaturesWith O-ring
Customizable:

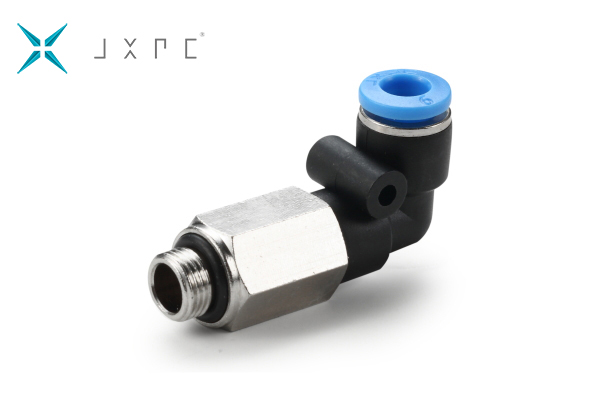

Color: Black on case, blue on release sleeve(as standard), other colors available
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging…
Related downloads
Related Parts
Related products
-

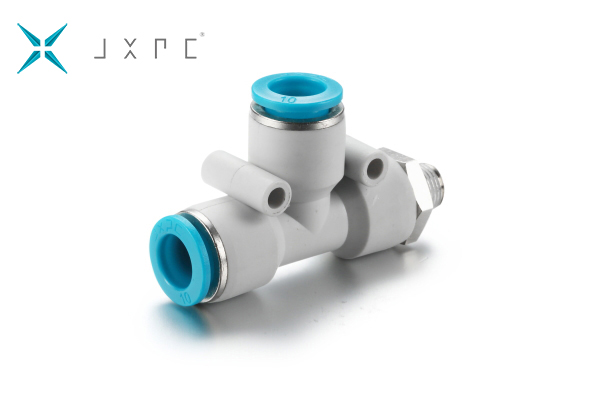

Male Run Tee Pneumatic Push-In Fitting, 8mm Tubing To PT1/2For most type of pneumatic push-in fittin... -
Cross Reducing Pneumatic Push-In Fitting, 6mm Tubing, 4mm ReducerFor most type of pneumatic push-in ... -

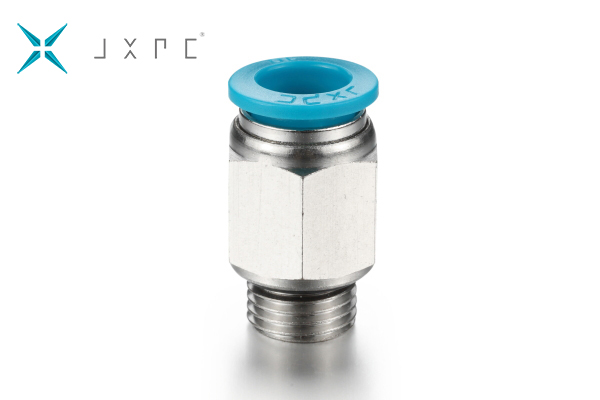

Straight Male Adapter Pneumatic Push-In Fitting, 4mm Tubing To G1/8For most type of pneumatic push-i... -
Straight Male Adapter Pneumatic Push-In Fitting, 6mm Tubing To M6 ThreadFor most type of pneumatic p... -

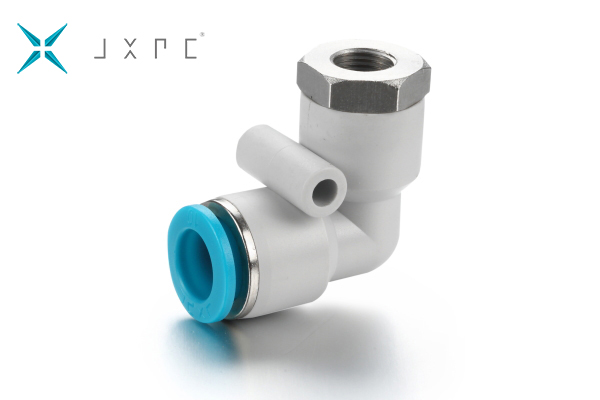

Female Elbow Pneumatic Push-In Fitting, 8mm Tubing To G1/8For most type of pneumatic push-in fitting... -

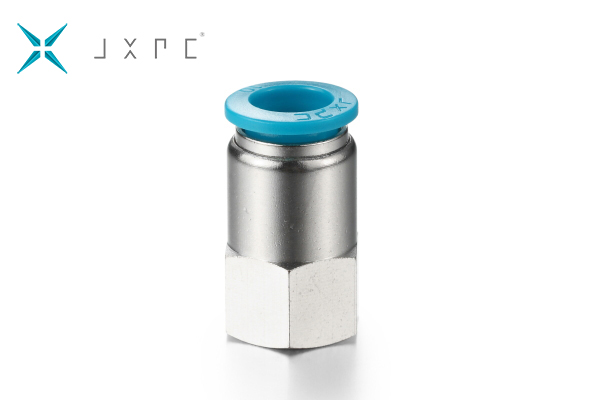

Straight Female Adapter Pneumatic Push-In Fitting, 6mm Tubing To G1/2For most type of pneumatic push... -
