3A110-06

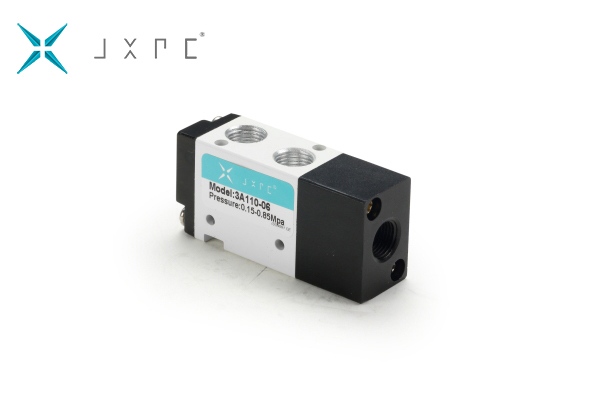

3/2 Air Control Valve, 3A 100 series, Air/Spring, G1/8
Air valves are shifted by an air pilot signal. You can operate the valve remotely or by using an air pilot signal.
Feature:
Structure in sliding column mode: good tightness and sensitive reaction.
3. Double air control valves have memory function.
Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
Multi-mounting helps to install and apply.
Integrate with the manifold to save installation space.
Product details
ItemAir Control Valve
Operation3-Way/2-Position
ActuationAir/Spring
Port SizeG1/8
Working Pressure1.5…8 bar
Max. Frequency5 Cycles/second
Ambient Temp. Range-10…60℃
Activate Times≤0.05 second
Circulation Volume(CV value)1.67
Overall Length56.5 mm
Body StyleBase Mounted
Overall Width18 mm
Body MaterialAluminium
Overa ll Height27 mm
