JPB16-R04

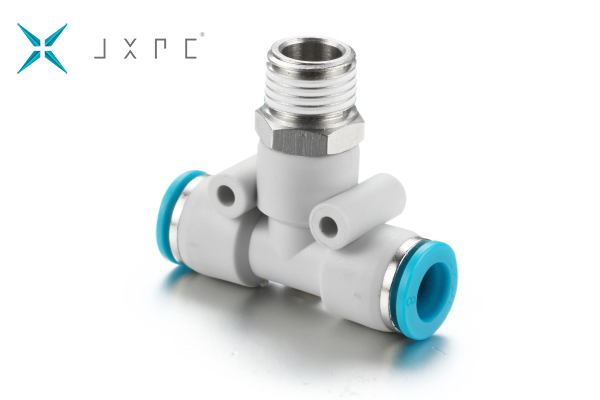

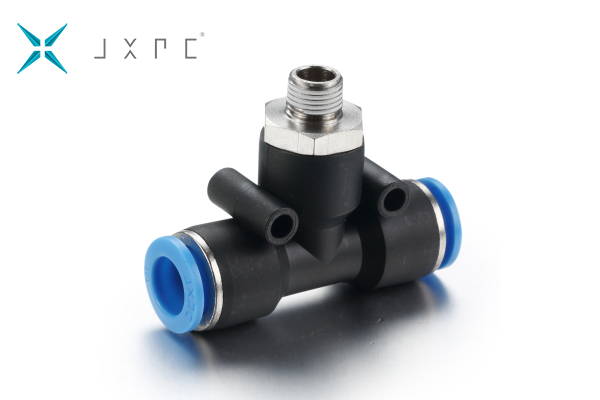

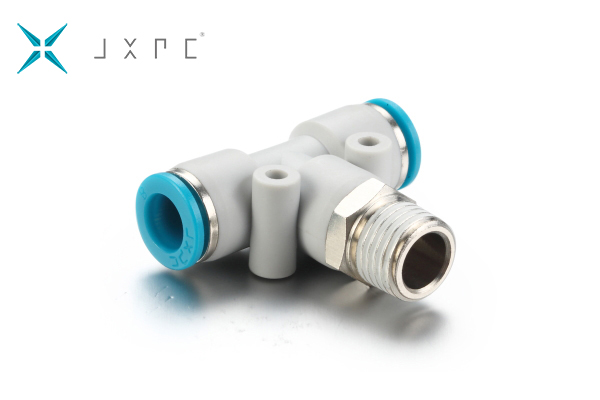

Male Branch Tee Pneumatic Push-In Fitting, 16mm Tubing To PT1/2
For most type of pneumatic push-in fittings, the body and threaded portion can tum independently of one another for use in confined spaces. For use with polyurethane, polyolefin, nylon, and PTFE tubing. Can be used for positive air pressure as well as vacuum for actuators, air preparation, and directional control valves. Low disconnecting force helps prevent collet and chuck from biting into and damaging tubing.
Feature:
Light weight design
Mass productive with low cost
Customizable plastic parts color
Stability performance
Product details
ItemMale Branch Tee
MediumAir, vacuum
Working Pressure-1...10 bar
Working Temperature0...60 ℃
Connection TypeTube x BSPT(M)
Tube Size16 mm
Thread SizeBSPT1/2"
Body MaterialPBT
Release SleevePOM
SealNBR
Lock ClawSUS
Special FeaturesWith Thread Sealant
Customizable:
Color: Black on case, blue on release sleeve(as standard), other colors available
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging…
