JPOC10-G04
Internal Hex Adapter Pneumatic Push-In Fitting, 10mm Tubing To G1/2
For most type of pneumatic push-in fittings, the body and threaded portion can tum independently of one another for use in confined spaces. For use with polyurethane, polyolefin, nylon, and PTFE tubing. Can be used for positive air pressure as well as vacuum for actuators, air preparation, and directional control valves. Low disconnecting force helps prevent collet and chuck from biting into and damaging tubing.
Feature:
Light weight design
Mass productive with low cost
Customizable plastic parts color
Stability performance
Product details
ItemMale Adapter
MediumAir, vacuum
Working Pressure-1...10 bar
Working Temperature0...60 ℃
Connection TypeTube x BSPP/G(M)
Tube Size10 mm
Thread SizeG1/2"
Body MaterialBrass Nickel Plated
Release SleevePOM
SealNBR
Lock ClawSUS
Special FeaturesWith O-ring
Customizable:
Color: Black on case, blue on release sleeve(as standard), other colors available
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging…
Related downloads
Related Parts
Related products
-
Male Y Branch Pneumatic Push-In Fitting, 16mm Tubing To G3/8For most type of pneumatic push-in fitti... -
Speed Controller Pneumatic Push-In Fitting, 8mm Tubing To G3/8For most type of pneumatic push-in fit... -

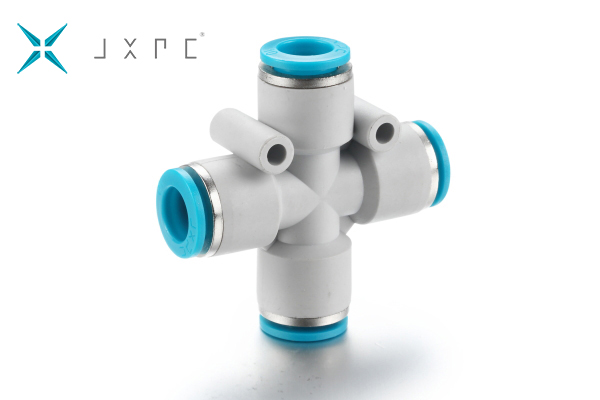

Equal Cross Pneumatic Push-In Fitting, 5/16 Inch Tubing, EqualFor most type of pneumatic push-in fit... -

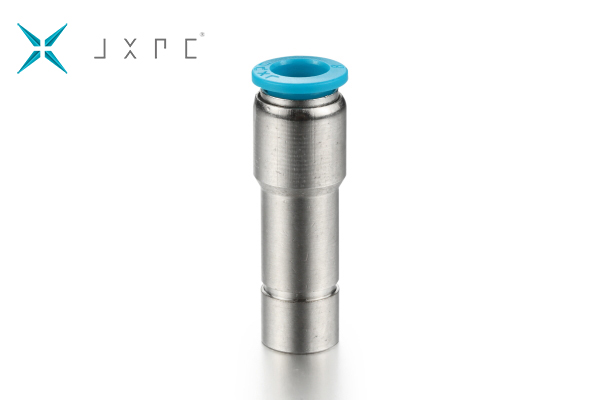

Plug-In Pneumatic Push-In Fitting, 10mm Tubing, EqualFor most type of pneumatic push-in fittings, th... -
