JPMF06-G04

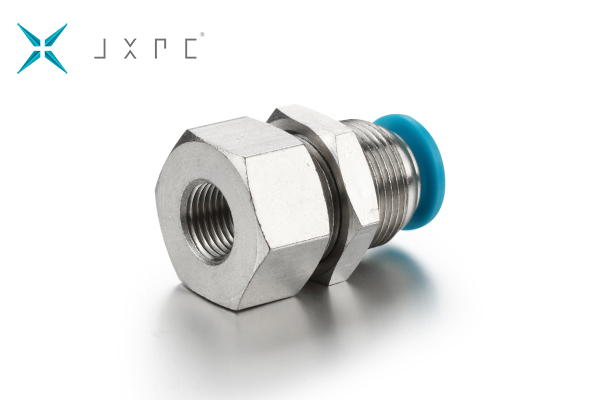

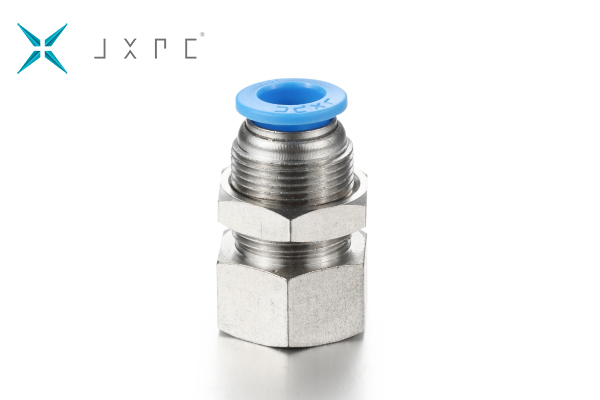

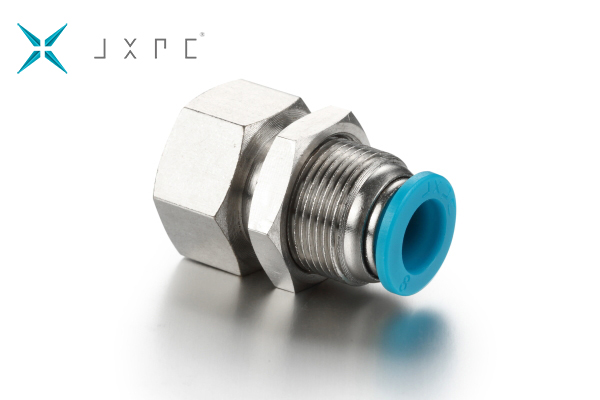

Straight Bulkhead Female Adapter Pneumatic Push-In Fitting, 6mm Tubing To G1/2
For most type of pneumatic push-in fittings, the body and threaded portion can tum independently of one another for use in confined spaces. For use with polyurethane, polyolefin, nylon, and PTFE tubing. Can be used for positive air pressure as well as vacuum for actuators, air preparation, and directional control valves. Low disconnecting force helps prevent collet and chuck from biting into and damaging tubing.
Feature:
Light weight design
Mass productive with low cost
Customizable plastic parts color
Stability performance
Product details
ItemBulkhead Female Adapter
MediumAir, vacuum
Working Pressure-1...10 bar
Working Temperature0...60 ℃
Connection TypeTube x BSPP/G(F)
Tube Size6 mm
Thread SizeG1/2"
Body MaterialBrass Nickel Plated
Release SleevePOM
SealNBR
Lock ClawSUS
Special FeaturesWith O-ring
Customizable:
Color: Black on case, blue on release sleeve(as standard), other colors available
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging…
Related downloads
Related Parts
Related products
-

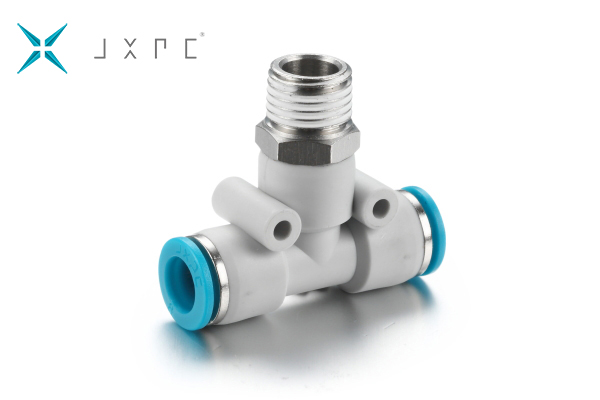

Male Branch Tee Pneumatic Push-In Fitting, 6mm Tubing To PT1/8For most type of pneumatic push-in fit... -
Single Banjo Universal Elbow Pneumatic Push-In Fitting, 8mm Tubing To G1/2For most type of pneumatic... -
Straight Male Adapter Pneumatic Push-In Fitting, 12mm Tubing To PT1/4For most type of pneumatic push... -
Single Banjo Female Universal Pneumatic Push-In Fitting, 10mm Tubing To PT1/4For most type of pneuma... -
Single Banjo Female Universal Pneumatic Push-In Fitting, 6mm Tubing To PT1/2For most type of pneumat...
-

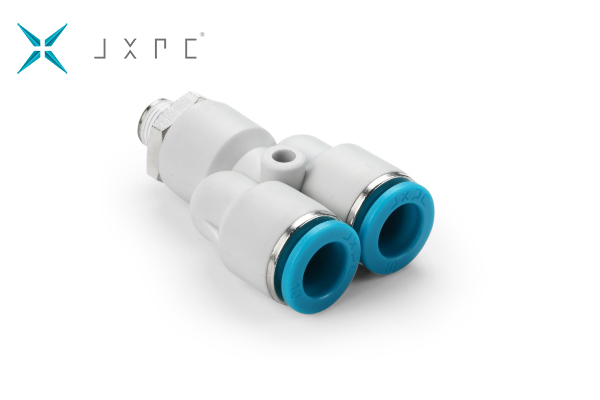

Male Y Branch Pneumatic Push-In Fitting, 8mm Tubing To PT1/4For most type of pneumatic push-in fitti... -

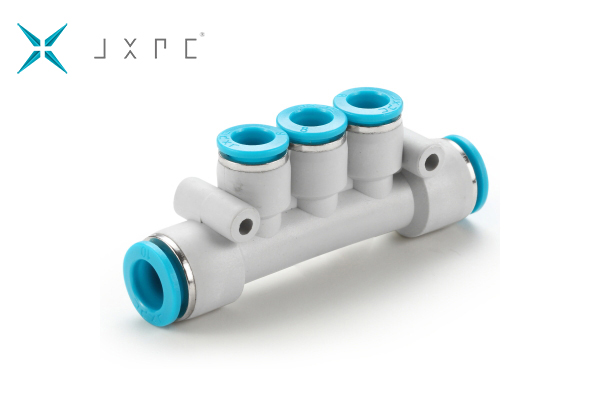

Multiple Tee Reducing Union Reducing Pneumatic Push-In Fitting, 10mm Tubing, 8mm ReducerFor most typ... -
