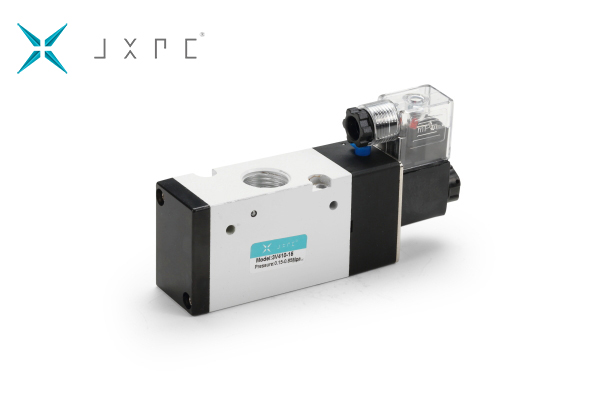

• ItemSolenoid Air Control Valve

• Electrical ConnectionsPlug or lead wire

• Operation5-Way/2-Position

• VoltageDC3V/5V/6V/12V/24V

• ActuationSolenoid/Spring

• Power ConsumptionDC: 0.4W

• Port SizeM5

• Insulation&Protection ClassClass F IP65

• Working Pressure–100 kPa to 7 bar

• Max. Frequency15 HZ

• Ambient Temp. Range-5…50℃

• Activate Times≤12 ms

• Circulation Volume(CV value)170 L/min

• Overall Length71.3 mm

• Body StyleBase Mounted

• Overall Width10 mm

• Body MaterialAluminium

• Overa ll Height32.2 mm

• FunctionExternal pilot

• Applied Cylinder BoreMaximum ϕ40 mm

Customized:

Thread type: G(as standard)/PT/NPT

Valve body color: silver/black/white/Gold/other

Branding: JXPC(as standard)/neutral(no brand)/customer brand

Notice: the customized products may asked for MOQ, please inquiry before you place the order.
