JAF3000-03

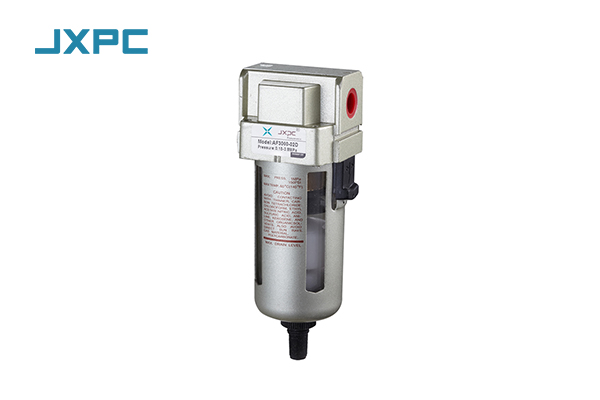

3/8 in BSPP Air Filter, 1500 L/min Rated Flow, 10 bar Max. Pressure
Air line filters are designed to remove airborne impurities, dirt particles, condensation and oil aerosols from compressed air through air supply lines, by means of centrifugal force and a filter element. These units are equipped with filter element, and differentIal(semi-auto) drain.
Feature:
40 micron filter element is replaceable
Includes differentIal(semi-auto) drain
Product details
MediumAir filters
For Removal OfParticles, Water
Filter Rating40 micron(25 micron optional)
Connection Size3/8 in BSPP
Max. Operating Pressure10 bar
Rated Flow1500 L/min
Body MaterialAluminium
Bowl MaterialPolycarbonate with cover
Bowl Size20 ml
Ambient Temperature5…60 ℃
Drain TypeDifferential(semi-auto)
Overall Height132.5 mm
Customizable:
Thread type: G(as standard)/PT/NPT
Material of filter element: Sintered bronze(as standard)/Plastic(PE)
Filter rating: 40μ(as standard)/25μ/5μ
Color: Golden/White/etc...
Drain type: DifferentIal(semi-auto) drain(as standard)/Auto drain
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
