2FRL20CW-02
1/4 in NPT Filter Regulator Lubricator, 40 micron, 10 cfm Rated Flow, 10 bar Max. Pressure

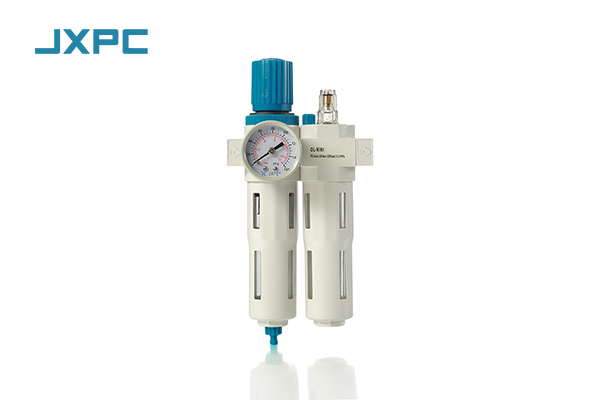

The 2-pc. units combine the air filter regulator with a lubricator. Combinations include mounting brackets and pressure gauges.
Feature:
To filter and lubricate the compressed air and output with stable pressure
Features a modular connector for easy removal and replacement.
40 micron filter element
Product details
MediumFilter/Regulator/Lubricator
SizeMiniature
For Removal OfParticles, Water
Filter Rating40 micron
Connection Size1/4 in NPT
Adjustment Range0.5…8.5 bar/5…125 psi
Rated Flow10 cfm
Body MaterialZinc
Bowl MaterialPolycarbonate without cover
Bowl Size40 ml
Ambient Temperature-5…50 ℃
Drain TypeManual
Gauge Port Size1/8 in NPT
Overall Height163 mm/6.42 in
Overall Width91 mm/3.58 in
IncludesMounting Brackets and Pressure Gauge
Customizable:
Thread type: NPT(as standard)/PT/G
Filter rating: 40μ/25μ/5μ
Drain type: Manual drain(as standard)/Auto drain
Color: Black(as standard)/White/Gray/etc...
Branding: JXPC(as standard)/Neutral(no brand)/Customized brand label, packaging...
